QSFP 28 100 g
QSFP 28 100 hesh gectical Transcal manufustrac28 yog modular interface tsim rau 100gbps siab- ceev networks. Nws tiav rau tag nrho bandwidth ntawm 100gbps3 los ntawm plaub {} channel kev sib xyaw ua ke technology (txhua channel txhawb 25gbps nrz lossis 50Gbps Pam4 kev ua haujlwm). Nws cov pob loj yog ...
- Khoom Taw qhia
QSFP 28 100 g optical Transcaly Chaw Tsim Tshuaj
QSFP28 yog modular interface tsim rau 100gbps siab - ceev teschs. Nws ua tiav tag nrho bandwidth ntawm 100gbps3 los ntawm plaub {} channel kev sib xyaw thev naus laus zis (txhua channel txhawb 25gbps Nws cov pob loj yog 18.3mm × 72.4mm, tau tshaj los QSFP + interface, thiab txhawb nqa siab- ntom ntom hloov qauv. Nws yog dav siv nyob rau hauv hloov interconnection.
QSFP 28 100 g kev faib
Raws li cov xwm txheej sib txawv, qsfp28 100 g feem ntau muab faib ua ob hom:} {{2} hom.
Ntau - hom:Feem ntau QSFP 28 100 g sr4, raws li multi- kev ntsuas kho qhov muag, MPO qhov nrug tsawg dua lossis sib npaug rau 100m.
Sing - hom:Nws tseem tuaj yeem muab faib ua 100g ib qho fiber ntau thiab 100g dual fiber.
- QSFP 28 100 g Tib fiber ntau tsuas yog siv nyob rau hauv plaub qhov kev ncua: 10km, 40k, uas tuaj yeem txuag tau cov peev txheej kho tau zoo thiab txo tus nqi.
QSFP 28 100 g ib leeg fiber ntau
QSFP 28 100 g bidi ib leeg fiber 20km
QSFP 28 100 g bidi ib leeg fiber 30km
QSFP 28 100 g bidi ib leeg fiber ntau 40km
QSFP 28 100 g bidi ib leeg fiber ntau 80km
2. QSFP {{1} g dualuag fiber ntau yog cov kev siv computer feem ntau yog 10g, 40km, 40km, 40km, 40km, 40km, 40km, 40km, 40km, 40k, 40k, 40k, 40 DWDM cov ntawv thov (coob tus lej ntawm SFPS thiab nce qhov tsis ua tiav).
QSFP 28 100 g dual fiber ntau
QSFP 28 100 g dlual fiber 10km lr4
QSFP {{0} g dual fiber 40km er4
QSFP 28 100 g dlle fiber ntau 80km ZR4
Qsfp 28 100 g dual fiber 60km er 4+
QSFP 28 100 g sib xyaw
Nyob ntawm cov hloov chaw xaiv xaiv los ntawm cov qhua tuaj noj mov, cov cai sib tw tuaj yeem sau tau uas tau sib xws nrog cov hom sib tw.
QSFP {{0} g sr4 datasheet
| Daim Ntawv Qhia Txog | QSFP28 | Cov ntaub ntawv tus nqi | 103.125gbps (4x25.78Gbps) |
| Lub paj | 850Nm | Cable deb | 70M @ OM3 / 100M @ OM4 |
| Tus txuas | MTP / MPO-12 | Koom haum tshaj xov | Mmf |
| Lub xa khoom hom | Vcsel 850nm | Tus tau txais hom | Rab koob |
| TX Hwj chim | -8.4 ~ 2.4dbm | Tau txais lub hwj chim | -10.3dbm |
QSFP 28 100 g lr4 datasheet
| Daim Ntawv Qhia Txog | QSFP28 | Cov ntaub ntawv tus nqi | 103.125gbps (4x25.78Gbps) |
| Lub paj | 1310nm | Cable deb | 10km |
| Tus txuas | Duplex lc | Koom haum tshaj xov | Smf |
| Lub xa khoom hom | 4 x lan wdm eml | Tus tau txais hom | Rab koob |
| TX Hwj chim | -4.3 ~ 4.5dbm | Tau txais lub hwj chim | -10.6dbm |

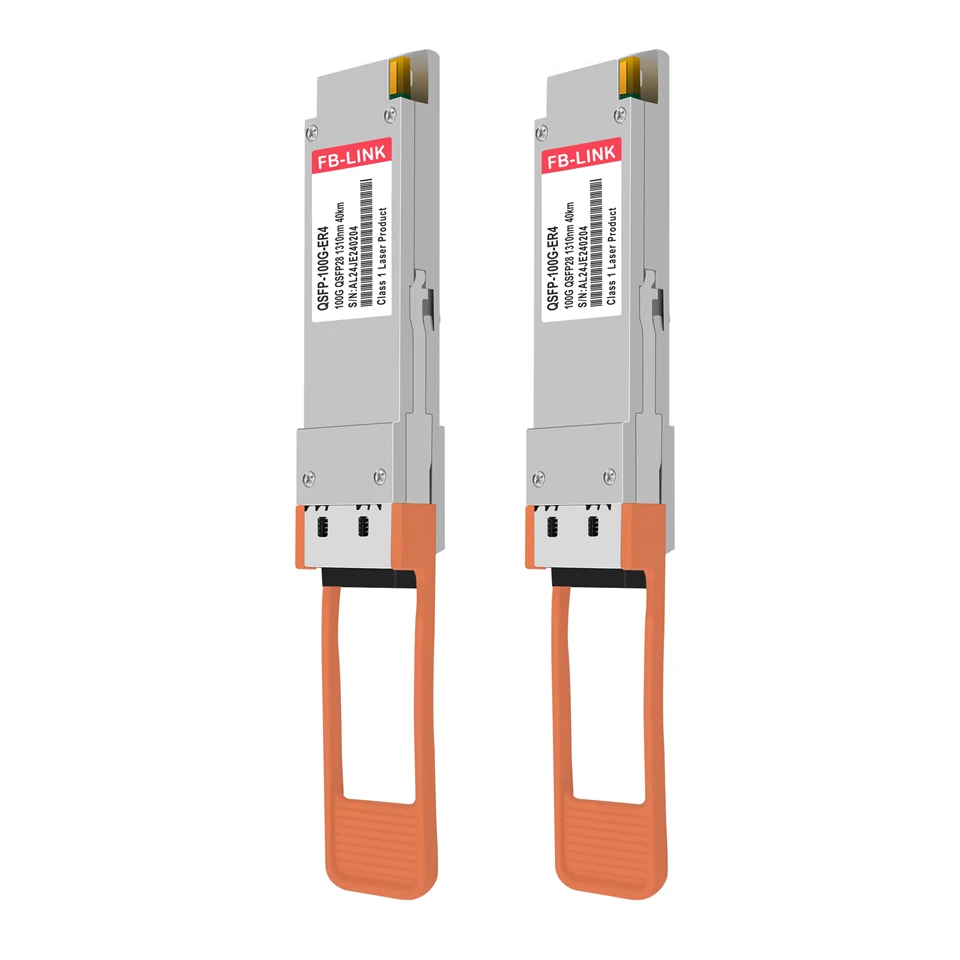

QSFP 28 100 g er4 datasheet
| Daim Ntawv Qhia Txog | QSFP28 | Cov ntaub ntawv tus nqi | 103.125gbps (4x25.78Gbps) |
| Lub paj | 1310nm | Cable deb | 25km ~ 40km |
| Tus txuas | Duplex lc | Koom haum tshaj xov | Smf |
| Lub xa khoom hom | 4 x eml | Tus tau txais hom | Apd |
| TX Hwj chim | -2.9 ~ 4.5dbm | Tau txais lub hwj chim | -20.9dbom |
QSFP 28 100 g Zr4 Datasheet
| Daim Ntawv Qhia Txog | QSFP28 | Cov ntaub ntawv tus nqi | 103.125gbps (4x25.78Gbps) |
| Lub paj | 1310nm | Cable deb | 80KM |
| Tus txuas | Duplex lc | Koom haum tshaj xov | Smf |
| Lub xa khoom hom | Lan wdm eml | Tus tau txais hom | Soa + tus pin |
| TX Hwj chim | -2.0 ~ 6.5Dbm | Tau txais lub hwj chim | -28dbm |
QSFP 28 100 g bidi ib leeg fiber ntau 10km datasheet
| Daim Ntawv Qhia Txog | QSFP28 | Cov ntaub ntawv tus nqi | 106.25gbps (4x25.78gbps) |
| Lub paj | 1271nm - txi} TXM - rx | Cable deb | 10km |
| Tus txuas | Yooj yim lc | Koom haum tshaj xov | Smf |
| Lub xa khoom hom | DFB | Tus tau txais hom | Rab koob |
| TX Hwj chim | -1.9 ~ 4.8DBM | Tau txais lub hwj chim | -10.6dbm |
QSFP 28 100 g bidi ib leeg fiber ntau 40km datasheet
| Daim Ntawv Qhia Txog | QSFP28 | Cov ntaub ntawv tus nqi | 106.25gbps (4x25.78gbps) |
| Lub paj | 1309.14nm - TXU 2 1304.58nm - rx | Cable deb | 40km |
| Tus txuas | Yooj yim lc | Koom haum tshaj xov | Smf |
| Lub xa khoom hom | MZM EML | Tus tau txais hom | Apd |
| TX Hwj chim | 1.7 ~ 7.1dbm | Tau txais lub hwj chim | -16dbm |
Yog tias koj xav tau cov kev txwv ntau dua, thov hu rau muag, Whatsapp: +86 13631442493
