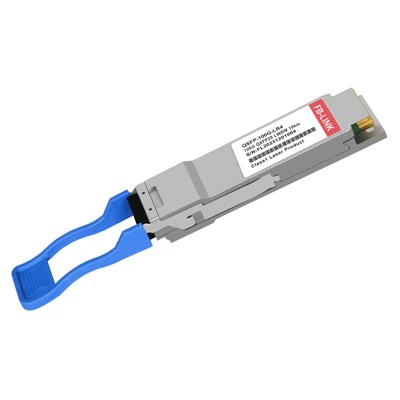

100G QSFP28 CWDM 1290nm 10km Tau tshaj Transceiver
Siab-kev ua tau zoo QSFP28 transceiver ua haujlwm ntawm 1290nm wavelength nrog 10-kilometer ncav cuag ib zaug- hom fiber ntau. Engineered rau ntau- neeg muag khoom sib raug zoo, qhov module no ua haujlwm seamlessly nrog Cisco, Juniper, Arista, thiab HPE cov khoom siv sib txuas - xa kev lag luam- qib kev sib txuas yam tsis muaj tus neeg muag khoom kaw.
- Khoom Taw qhia
Khoom Paub meej
Multi-Vendor Compatible
Plug-thiab- ua si ua haujlwm nrog cov hom kev sib txuas loj. Tsis muaj kev txwv tus kheej, txo tus nqi yuav khoom piv rau OEM optics.
10km Extended Reach
Kev xa tawm dhau ib zaug - hom fiber ntau hla kev deb ntawm metro - zoo tagnrho rau cov pob txha hauv tsev kawm ntawv, inter- kev txuas hauv tsev, thiab cov ntaub ntawv chaw sib txuas.
Technical Specifications
|
Optical & Hluav Taws Xob Parameters |
|||
|---|---|---|---|
| Form Factor | QSFP28 | Cov ntaub ntawv tus nqi | 4 × 25.78G (103.125Gbps) |
| Lub wavelength | 1270/1290/1310/1330nm | Max nrug | 10km (SMF) |
| Txuas | Duplex LC / UPC | Hom Fiber | Tib -Mod G.652 |
| Tx Power | -4.3 ~ +4.5 dBm | Rx rhiab heev | -10.6 dBm |
| Kev khiav hauj lwm Temp | 0℃rau +70 degree | Hwj chim | < 3.5W |
| DDM/DOM | Txhawb nqa | Ua raws | QSFP28 MSA, RoHS |
Hais txog CWDM Technology: Coarse Wavelength Division Multiplexingsiv 20nm channel sib nrug mus rau multiplex plaub wavelengths (1271/1291/1311/1331nm) dhau ib khub fiber ntau. Txoj hauv kev no muab tus nqi - siv tau 100 Gigabit kis tau tus mob yam tsis muaj qhov kub thiab txias - tswj lasers xav tau los ntawm DWDM systems.
Platform Compatibility
Qhov thib peb - tog tau kho qhov muag module tau sim rau kev cuam tshuam nrog kev lag luam thiab cov ntaub ntawv chaw hloov pauv platforms. Txhua chav nyob yog programmed nrog cov neeg muag khoom- cov cim qhia tshwj xeeb rau ntsaws- thiab - ua si.
Cisco
Catalyst 9500/9400
Juniper
MX Series, EX4600
Arista
7280R / 7500R Series
HPE
Aruba CX Series
Dell
S4100/Z9000
Mellanox
SN3000/SN4000
Yog vim li cas Extended 10km Reach Matters
Standard SR4 modules txwv kev xa mus rau 100 meters tshaj multimode fiber. Qhov notib - hom fiber ntau transceiverncua kev sib txuas los ntawm 100x, ua rau kev xa tawm cov xwm txheej uas luv luv -ntau yam optics tsis tuaj yeem nyob:
Metro Data Center Interconnect:Txuas thaj chaw faib chaw thoob plaws cheeb tsam hauv nroog tsis muaj teeb liab rov tsim dua.
Campus Network Backbone:Txuas cov tsev nyob thoob plaws lub koom haum, tsev kawm ntawv, lossis tsev kho mob cov tsev kawm ntawv uas muaj kev sib txuas siab -bandwidth.
Disaster Recovery Links:Tsim kom muaj synchronous replication rau DR qhov chaw nyob ib mais ntawm cov ntaub ntawv tseem ceeb.
Kev siv fiber ntau tam sim no:Leverage ntsia ib zaug -mode infrastructure pib siv rau ntev - daim ntawv thov nyob deb.
Ib puag ncig kev xa khoom yooj yim
Qhov ntev no - ncav cuag CWDM optical transceiver pab cov koom haum xav tau siab -bandwidth kev sib txuas dhau 100-meter txwv ntawm kev daws teeb meem multimode. Cov chaw muab kev pabcuam tsim kho metro Ethernet tes hauj lwm siv cov qauv no los xa cov kev pabcuam kev lag luam thoob plaws hauv nroog. Cov lag luam loj nrog cov cheeb tsam hauv tsev kawm ntawv siv lawv rau kev sib txuas ntawm caj qaum ntawm lub hauv paus, cov tuam tsev, thiab cov chaw nyob deb. Cov kab ke kev noj qab haus huv thiab cov tsev kawm ntawv qib siab nrog cov chaw sib kis thoob plaws ntau lub nroog thaiv kev cia siab rau qhov kev daws teeb meem no txhawm rau txhim kho tsheb mus rau hauv qhov chaw nruab nrab. Colocation muab kev pab cuam leverage CWDM wavelength multiplexing kom siv fiber ntau thaum sib txuas cov chaw nyob ib sab.
Zoo & Kev Xeem
Txhua FB -LINK optical module tau dhau los ua kev kuaj xyuas lub Hoobkas ua ntej xa khoom. Peb cov txheej txheem tswj kev ua tau zoo suav nrog kev xa hluav taws xob pov thawj, kev lees paub qhov tseeb ntawm qhov tseeb, qhov muag daim duab tsom, thiab ntsuas qhov ntsuas me ntsis yuam kev thoob plaws qhov ntsuas kub ua haujlwm.
100% Hoobkas kuaj nrog cov ntaub ntawv tsis
Kev tiv thaiv ESD raws li cov qauv kev lag luam
RoHS ua raws, coj- sib dhos dawb
Daim ntawv qhia txog kev xeem tus kheej suav nrog
Xav tau tus nqi lossis kev txheeb xyuas kev sib raug zoo?
Hu rau peb pab neeg ua haujlwm rau cov lus qhia tshwj xeeb, nqe lus, thiab kev pom zoo ntawm lub platform uas haum rau koj cov kev xav tau.
Cov lus nug nquag
Q: Cov qauv no puas tuaj yeem ua haujlwm hauv CWDM4 multiplexed configuration?
A: Yog. Lub 1290nm wavelength yog ib qho ntawm plaub channel (1271/1291/1311/1331nm) hauv CWDM4 tswvyim. Thaum ua ke nrog kev sib txuas ntxiv wavelength modules thiab passive CWDM multiplexer, koj tuaj yeem sib sau ua ke 100 Gigabit tsheb hla ib khub fiber ntau.
Q: Dab tsi yog qhov txawv ntawm qhov sib xws thiab OEM transceivers?
A: Tau tshaj transceivers(tseem hu ua thib peb- tog lossis generic optics) ua tau raws li MSA cov lus qhia zoo ib yam li OEM modules tab sis yog tsim los ntawm nws tus kheej. Lawv muab qhov sib npaug ntawm cov nqi qis. Peb cov modules tau coded ua haujlwm nrog koj lub npe hloov pauv tshwj xeeb.
Q: Kuv puas yuav tsum tau hloov pauv hloov chaw rau qhov sib xws optics?
A: Feem ntau cov chaw lag luam hloov pauv txhawb tau tshaj transceivers ib txwm muaj. Cisco cov khoom siv yuav xav tau "kev pabcuam tsis muaj kev txhawb nqa-transceiver" cov lus txib ntawm IOS version qub. Juniper thiab Arista platforms feem ntau ua haujlwm yam tsis muaj kev hloov pauv. Tiv tauj peb rau lub platform-cov lus qhia tshwj xeeb.
Cim npe nrov: 100G QSFP28 CWDM 1290nm, tshaj transceiver, 10km optical module
