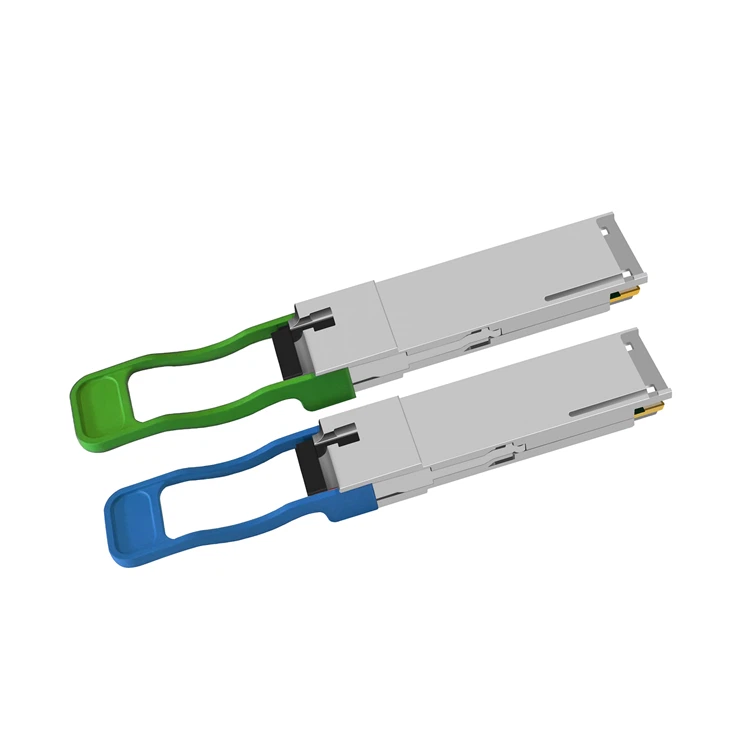

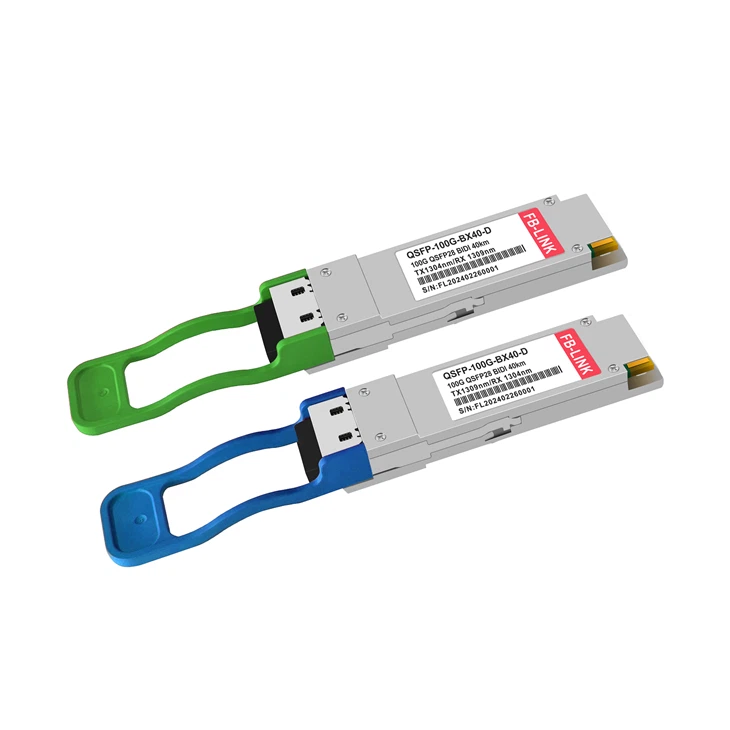

100G QSFP28 BIDI 40KM Tib Fiber
100G QSFP28 BIDI 40KM Tib Fiber Lub QSFP-100G-BX40 transceiver yog tsim los muab cov kev daws teeb meem yooj yim rau 100G daim ntawv thov hauv QSFP28 daim ntawv foos. QSFP-100G-BX40 yog tsim los rau cov ntaub ntawv tus nqi mus txog 106.25Gb/s thiab txuas ntev mus txog 40km. Cov zis tawm yog: 4.7 ~ 7.9dBm, thiab ...
- Khoom Taw qhia
100G QSFP28 BIDI 40KM Tib Fiber
QSFP-100G-BX40 transceiver yog tsim los muab cov kev daws teeb meem yooj yim rau 100G daim ntawv thov hauv QSFP28 daim ntawv foos. QSFP-100G-BX40 yog tsim los rau cov ntaub ntawv tus nqi mus txog 106.25Gb/s thiab txuas ntev mus txog 40km. Cov zis tawm yog: 4.7 ~ 7.9dBm, thiab qhov tau txais rhiab heev yog:<-14dBm. Supports the Digital Diagnostic Management (DDM) interface and the I2C interface.
Ordering Information
| Tshooj Naj Npawb | Tso zis zog | Tus txais | rhiab heev | Mus txog | Temp | DDM | RoHS |
| QSFP-100G-BX40 | 4.7 ~ 7.9dBm | APD | ＜-14dBm | 40km ua | 0 ~ 70 degree | Muaj | Ua raws |
Xaiv cov modules raws li koj xav tau
| Qauv | QSFP-100G-BX10 | QSFP-100G-BX20 | QSFP-100G-BX30 | QSFP-100G-BX40 |
| Lub wavelength | 1271nm / 1331nm | 1280nm / 1310nm | 1309.14nm / 1304.58nm | 1309.14nm / 1304.58nm |
| Txuas | Simplex LC | Simplex LC | Simplex LC | Simplex LC |
| Kab nrug deb | 10km ua | 20km ua | 30km ua | 40km ua |
| Modulation | 4 x 26.56g NRZ | 4x 25 g NRZ | 2 x 53.125G PAM4 | 2 x 53.125G PAM4 |
| Kev siv fais fab | Tsawg dua los yog sib npaug rau 4W | Tsawg dua lossis sib npaug li 5W | Tsawg dua lossis sib npaug li 4.5W | Tsawg dua lossis sib npaug li 4.5W |
| Hom Transmitter | DFB | DFB | EML | EML |
| Cov txheej txheem | QSFP28 MSA | QSFP28 MSA | 100G-ER1-30, SFF-8636 Rev 2.10a, QSFP28 MSA | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
Tau tshaj keyboards
Peb 100G ib leeg fiber ntau module yog sib xws nrog cov keyboards ntawm txhua hom loj.
Cov lus nug nquag
Lorem ipsum dolor sit amet, consectetur.
Qhov siab tshaj plaws uas tau muab los ntawm Huawei Compatible QSFP28 transceiver yog dab tsi?
+
-
Lub Huawei Compatible QSFP28 transceiver muaj 100GBase-BX throughput.
Cov ntawv thov dab tsi yog Cisco Compatible QSFP28 transceiver haum rau?
+
-
Cisco Compatible QSFP28 transceiver yog tsim rau ntau yam kev siv, suav nrog 100G Ethernet, cov ntaub ntawv chaw, thiab chaw cia khoom sib txuas.
Arista Compatible QSFP28 transceiver xa cov ntaub ntawv hla ib hom fiber ntau npaum li cas?
+
-
Arista tau tshaj QSFP28 transceivers tuaj yeem xa cov ntaub ntawv mus txog 40 km dhau ib hom fiber ntau. Ib leeg-fiber module kuj tau tsim uas tuaj yeem ncav cuag 80 km.
Puas muaj tej yam kev kuaj mob rau 100G QSFP28 transceivers?
+
-
Yog lawm, digital diagnostics functions muaj nyob ntawm I2C interface, tso cai rau nkag mus rau lub sijhawm ua haujlwm tsis muaj sijhawm.
Puas yog qhov txuas tshwj xeeb xav tau rau Juniper Compatible QSFP28 transceiver?
+
-
Juniper Compatible QSFP28 transceiver siv LC connector rau kev yooj yim installation.
Daim duab
Mechanical Dimensions
