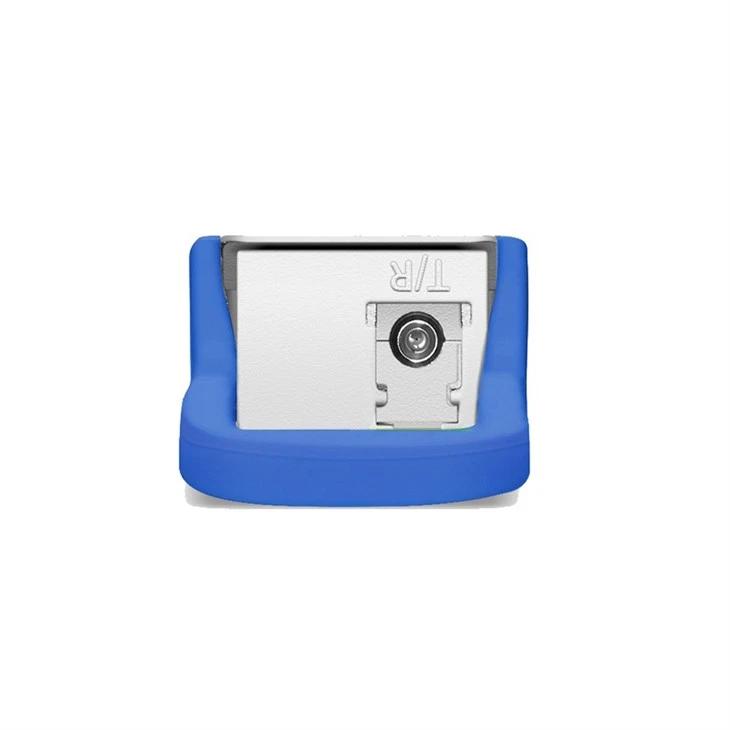

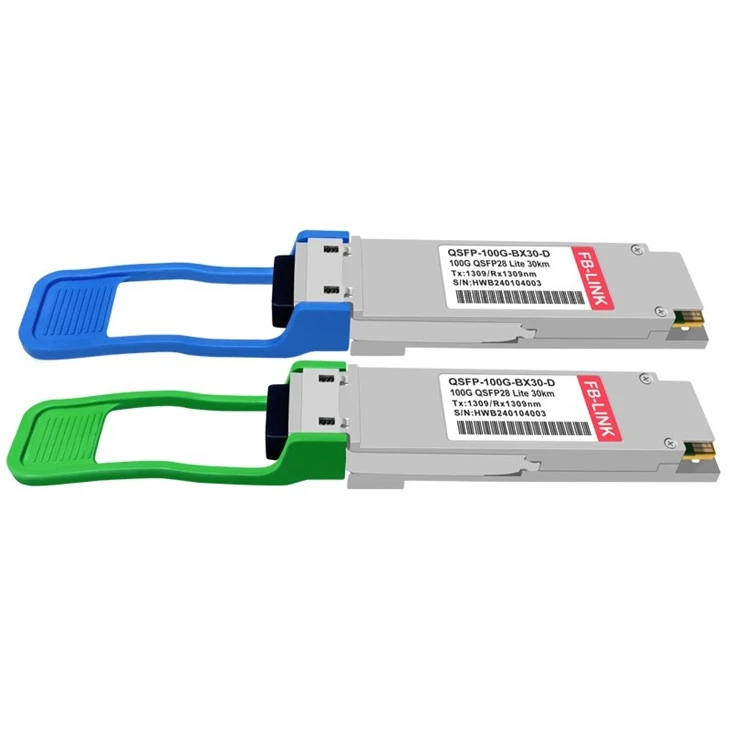

100G QSFP28 BIDI 30km
100G QSFP28 BIDI 30KM Ib Leeg LC optical transceiver Module 100GBASE QSFP28 BIDI ER1-Lite yog lub high-speed fiber optic module haum rau ib puag ncig uas xav tau kev sib kis ceev cov ntaub ntawv. Lub 100Gbps QSFP28 optical transceiver kuj tuaj yeem hloov kho rau 10km, 20km, thiab 30km, uas tuaj yeem ua tau raws li ...
- Khoom Taw qhia
100G QSFP28 BIDI 30KM Tib LC optical transceiver Module
100GBASE QSFP28 BIDI ER1-Lite yog qhov kev kub ceev fiber ntau optic module haum rau ib puag ncig uas xav tau cov ntaub ntawv xa mus ceev. Lub 100Gbps QSFP28 optical transceiver kuj tuaj yeem hloov kho rau 10km, 20km, thiab 30km, uas tuaj yeem ua tau raws li qhov xav tau ntawm kev sib kis ntev ib leeg.
Qhov no QSFP28 optical module muab 100GBase-BX throughput mus txog 40 kilometers ntawm 1309.14nm-TX / 1304.58nm-RX wavelength dhau ib hom fiber ntau (ib hom) thiab siv LC connectors rau kis tau tus mob. Qhov no bidirectional module yuav tsum tau siv nrog lwm optical module los yog network ntaus ntawv uas phim lub wavelength.
Zuag qhia tag nrho, 100GBASE QSFP28 BIDI ER1-Lite yog qhov zoo tshaj plaws high-speed fiber optic interface. Nws qhov kev kub ceev, kev ua haujlwm zoo thiab kev ua haujlwm yooj yim ua rau nws haum rau ntau yam kev sib kis cov ntaub ntawv thiab tau dhau los ua ib feem tseem ceeb ntawm kev sib txuas lus niaj hnub. Feem ntau siv hauv 100G Ethernet, cov chaw khaws ntaub ntawv thiab chaw cia khoom sib txuas.
Compatible hloov
100Gbps QSFP28 BIDI series tsis
Nrog nws txoj kev tsom mus rau kev lag luam thiab ntau xyoo ntawm kev nplua nuj, FB-LINK tuaj yeem muab cov neeg siv khoom nrog 200G QSFP56, 400G QSFP56, 400G QSFP-DD, 400G OSFP, 800G QSFP-DD, thiab 800G OSFP optical transceiver module khoom thiab cov kev daws teeb meem.
| cov khoom |
 |
 |
 |
| Qauv nab npawb | 100G TSI 10KM | 100G TSI 20KM | 100G TSI 30KM |
| Max Data Rate | 106.25 Gbps | 106.25 Gbps | 106.25 Gbps |
| Max Kab nrug deb | 10 KM | 20 KM | 30 KM |
| Lub wavelength | 1271nm / 1331nm EML | 1280nm / 1310nm EML | 1304.58nm / 1309.14nm EML |
| TX Power | -1.4 ~ +4.5dBm | 0 ~ 4.5dBm | 0~{1}}.6dBm |
| Yam tsawg kawg nkaus txais lub zog | Tsawg dua lossis sib npaug rau -6.1dBm | Tsawg dua lossis sib npaug rau -9.1dBm | Tsawg dua lossis sib npaug rau -12.5dBm |
| Txuas | Simplex LC | Simplex LC | Simplex LC |
| Media | SMF | SMF | SMF |
| Kev siv fais fab | Tsawg dua lossis sib npaug li 4.5W | Tsawg dua lossis sib npaug li 5W | Tsawg dua lossis sib npaug li 5W |
| Warranty | 3 Xyoo | 3 Xyoo | 3 Xyoo |
Peb cov khoom thiab khoom siv
Peb tus xov tooj hu dawb dawb: +86 13631442493
12
xyoo
Peb tau ua haujlwm hauv kev lag luam txij li xyoo 2008
65
invention patents
Peb tau txais feem ntau ntawm cov ntawv pov thawj kev tshaj lij hauv kev lag luam thiab hais kom thoob ntiaj teb cov qauv tsim khoom.
90
khoom plig
Peb tau yeej ntau software copyrights nrog peb pab neeg R & D muaj zog.
koj puas muaj lus nug?
Lorem ipsum dolor sit, amet consectetur adipisicing elit.
Koj Paub Ntau npaum li cas txog 200G QSFP56?
200G QSFP56 kho qhov muag module yog qhov hloov kho dua tshiab ntawm 40G QSFP + thiab 100G QSFP28 optical modules. Nws siv lub mainstream digital signal processor (DSP) thiab txais ib pob kub-swappable QSFP56. Nws muaj 4 txoj kev xa tawm ywj pheej thiab tau txais cov teeb liab kho qhov muag, txhua qhov kev sib kis ntawm cov channel yog 50G feem.
Cov ntawv ntim 400G transceivers yog dab tsi?
400G optical module yog ib qho ntawm cov khoom tseem ceeb ntawm cov ntaub ntawv ceev ceev tam sim no. Nws tuaj yeem txhawb nqa gigabit-theem high-speed kis tau tus mob nyob rau hauv cov ntaub ntawv chaw, huab xam, supercomputing thiab lwm yam teb, yog li nws yog nyiam los ntawm kev ua lag luam. Raws li qhov sib txawv daim ntawv thov scenarios thiab cov kev xav tau, muaj ntau ntau hom ntim cov ntaub ntawv ntawm 400G optical modules. Hauv qab no, cia peb kawm txog lawv ib leeg.
1. QSFP-DD optical module
QSFP-DD optical module yog ib tiam tom ntej ob-qhov ntom ntom 400G optical module siv QSFP28 optical module qauv. Nws txhawb nqa 8-channel 400G kis tau tus mob thiab tseem tuaj yeem muab faib ua 4-channel 100G kis tau tus mob. QSFP-DD optical module siv MPO / MTP optical fiber ntau txuas. Piv nrog rau QSFP28 optical module, nws qhov loj me yuav luag tib yam, tab sis nws tuaj yeem muab tus nqi sib kis ntau dua thiab hloov tau yooj yim thiab yooj yim dua.
2. OSFP optical module
OSFP optical module yog lwm 400G high-speed kis tau tus mob optical module. Nws txais yuav cov qauv ntim ntau dua thiab tuaj yeem txhawb nqa 8-channel 400G kis tau tus mob. Piv nrog rau QSFP-DD optical module, OSFP optical module me dua, tab sis nws yuav tsum tau siv 2x16 MPO / MTP optical fiber connector, uas kuj txhais tau hais tias yuav tsum muaj kev sib txuas ntawm fiber ntau optical.
Txhawm rau ua kom tiav, muaj ntau ntau hom ntawv ntim rau 400G optical modules. Txhua hom muaj nws qhov zoo thiab qhov tsis zoo. Daim ntawv ntim khoom tsim nyog tshaj plaws tuaj yeem xaiv tau raws li kev thov tshwj xeeb scenarios thiab kev xav tau. Txawm hais tias siv daim ntawv ntim twg, nws yuav tsum muaj kev kub ceev, ruaj khov, thiab txhim khu kev qha kom tau raws li kev lag luam txuas ntxiv mus thiab kev thov rau kev xa cov ntaub ntawv ceev ceev.
100G QSFP28 transceiver yog dab tsi? Vim li cas QSFP28 Transceiver thiaj li nrov?
Lub 100G QSFP28 kho qhov muag module yog ib qho kev sib txuas ceev ceev rau kev sib txuas lus kho qhov muag uas tuaj yeem ua tiav cov ntaub ntawv xa mus txog 100Gbps. Nws yog plaub-channel optical module. Tus nqi ntawm txhua channel tuaj yeem ncav cuag 25Gbps. Nws siv fiber ntau optical rau kev sib txuas thiab sib xws nrog Ethernet, Fiber Channel thiab lwm yam kev cai. Piv nrog rau lwm cov optical modules, QSFP28 optical modules muaj qhov zoo ntawm kev ceev dua, me me, qis zog noj thiab kev ntseeg siab dua.
QSFP28 optical module yog qhov nrov heev vim nws ua tau raws li cov ntaub ntawv xa mus ceev tam sim no. Nyob rau hauv niaj hnub Internet thiab cov chaw zov me nyuam, cov ntaub ntawv kis tau tus mob tau sai thiab sai, thiab 100G QSFP28 optical module tuaj yeem ua tau raws li qhov xav tau ntawm cov ntaub ntawv loj. Nyob rau tib lub sijhawm, qhov me me ntawm QSFP28 optical module tso cai rau nws hloov mus rau denser khib installation. Qhov no kuj yog tus qauv ntawm cov ntaub ntawv chaw cov cuab yeej maj mam txhim kho mus rau qhov siab ceev thiab kev koom ua ke siab.
Feem ntau, 100G QSFP28 optical module yog ceev, zoo thiab txhim khu kev qha, thiab tuaj yeem ua tau raws li cov kev xav tau ntawm cov ntaub ntawv xa mus ntau. Yog li ntawd, nws tau dav siv nyob rau hauv cov ntaub ntawv chaw, kev sib txuas lus tes hauj lwm thiab lwm yam teb, ua ib qho ntawm feem nrov optical modules tam sim no.
Tej Yam Koj Yuav Xav Paub Txog 100G QSFP28
100G QSFP28 yog optical transceiver rau high-ceev cov ntaub ntawv kis tau tus mob thiab yog dav siv nyob rau hauv cov ntaub ntawv chaw zov me nyuam, huab xam, chaw cia khoom network, kev ua tau zoo xam thiab lwm yam teb. Qhov no module siv plaub coding hluav taws xob cov khoom siv thiab modulated lasers nrog ib tug kis tau tus mob ntawm 10.3Gbps los yog 25Gbps, thiab muaj peev xwm xa high-ceev cov ntaub ntawv nyob rau hauv ib tug deb ntawm 1 km mus rau 100 km.
