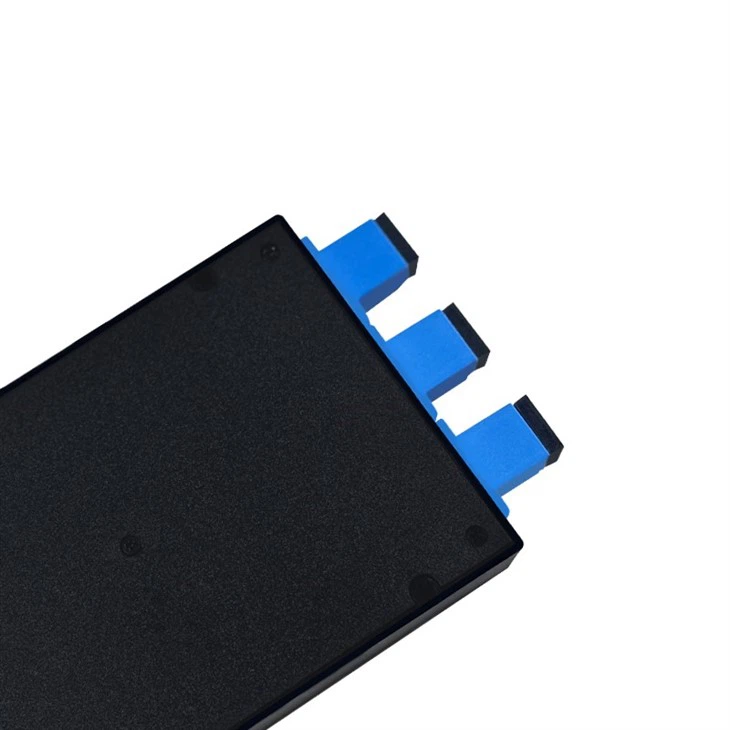

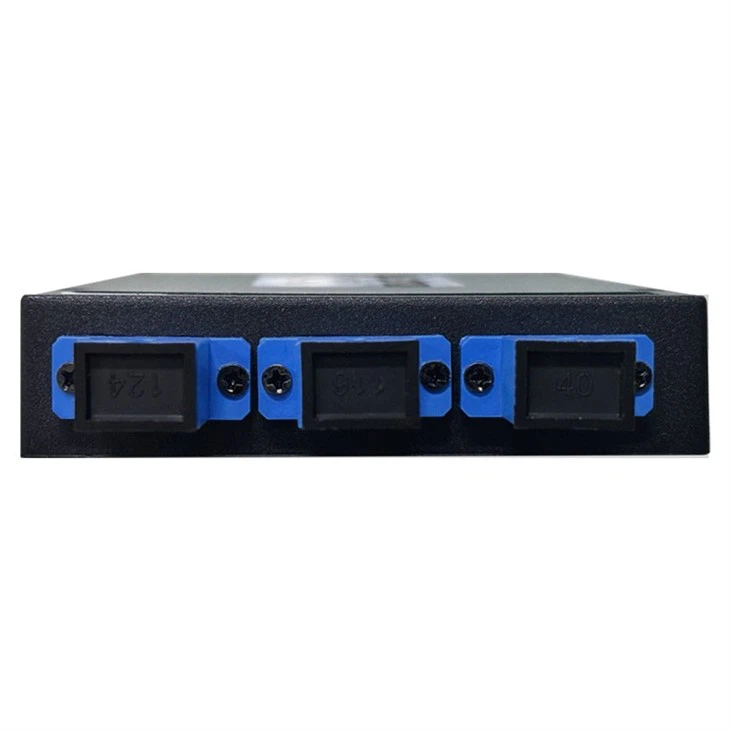

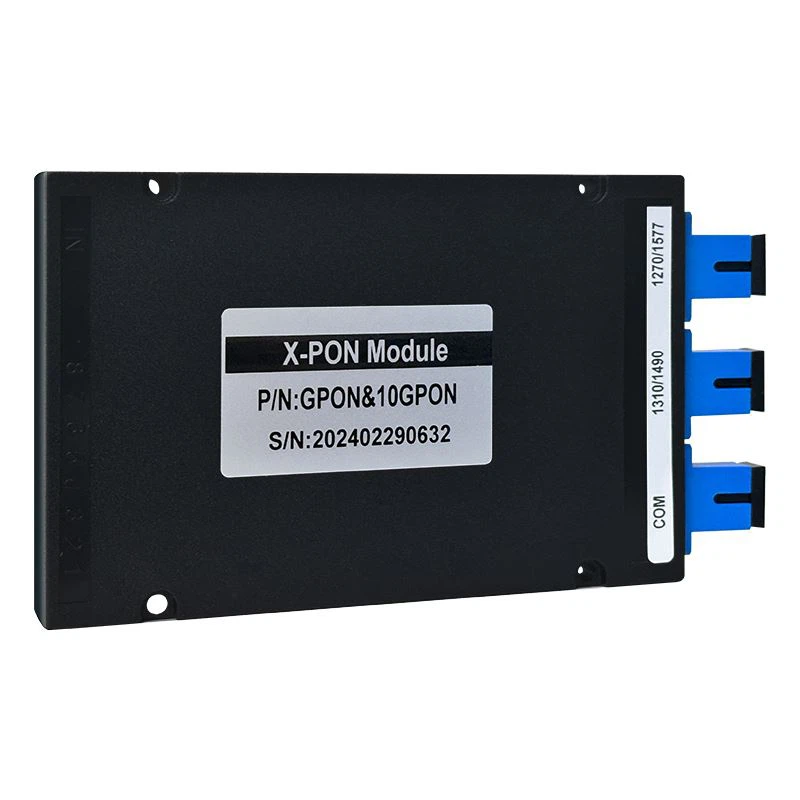

WDM X-PON Module
- Khoom Taw qhia
|
Parameter
|
Specification
|
Chav tsev
|
|
|
Bandpass
|
|||
|
GPON (GPON band)
|
1290-1330/1480-1550
|
nm | |
|
XGS-PON (XGS-PON band)
|
1260-1280/1575-1580
|
nm | |
|
Insertion poob *
|
Thawj Max
|
Eol Max
|
dB |
|
COM - GPON (GPON band)
|
0.8 | 0.9 | dB |
|
COM - XGS-PON (XGS-PON band)
|
1 | 1.1 | |
|
Kev tsis sib haum xeeb
|
Thawj Max
|
Eol Max | |
| 0.6 | 0.8 | dB | |
|
Kev sib cais wavelength
|
Min | ||
|
COM - GPON (XGS-PON bands)
|
30 | dB | |
|
COM - XGS-PON (GPON bands)
|
30 | dB | |
|
Rov Los Los
|
min | ||
|
Txhua qhov chaw nres nkoj
|
55 | dB | |
|
Kev taw qhia
|
min | ||
|
Chaw nres nkoj C (GPON Chaw nres nkoj)
|
60 | dB | |
|
PDL (Polarizarion Dependent Loss)
|
Initial Max
|
Eol Max
|
|
|
Txhua qhov chaw nres nkoj
|
0.2 | 0.35 | dB |
|
Optical Fais Fab Kev Ua Haujlwm
|
Max | ||
|
Environmental Performance
|
Ib txwm
|
Lub Sijhawm luv
|
|
|
Ua haujlwm kub
|
-5 rau +40
|
-5 rau +50
|
degree
|
|
Ua haujlwm txheeb ze humidity
|
5 rau 85
|
5 rau 90
|
% RH
|
| Cia Kub |
-40 rau +85
|
degree | |
|
Ua haujlwm txheeb ze humidity
|
mus 93
|
% RH
|
|
|
Kev ntseeg tau
|
Tsim kom tau raws li cov neeg kho tshuab thiab ib puag ncig
|
||
|
Insertion Loss suav nrog WDL, TDL thiab PDL NROG ob pawg ntawm cov khoom sib txuas ntawm ob qho kawg.
|
|||
