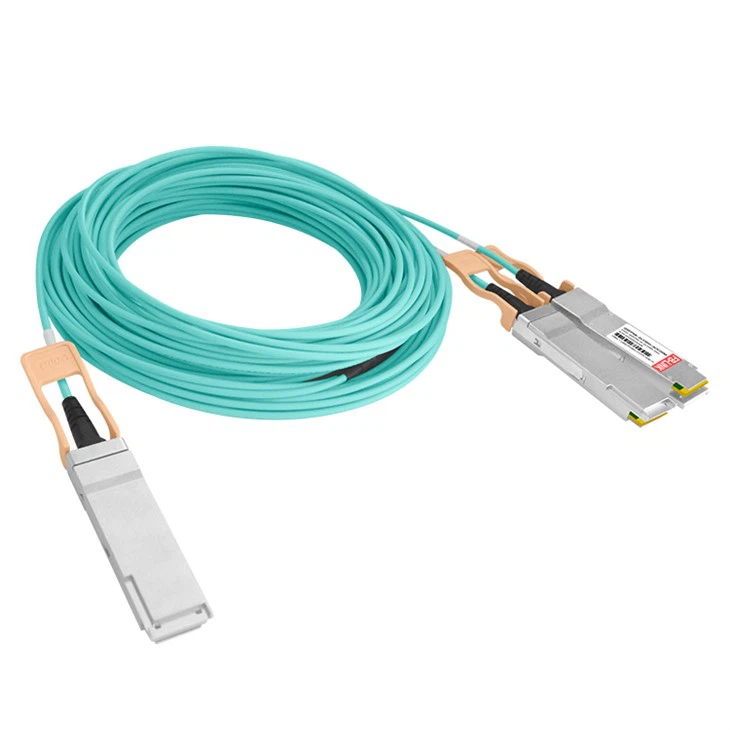

200G QSFP56 Rau 2x100G InfiniBand EDR AOC
200G QSFP-DD rau 2x100G QSFP28 active optical cable tau tshaj Mellanox.
- Khoom Taw qhia
200G AOC Cable Mellanox MFA1A 00-E005 Active Optical Cable InfiniBand EDR
Nta
● Active optical cable nrog breakout los ntawm QSFP56 200G rau ob QSFP56 100G
● Txog 53.125Gbps cov ntaub ntawv tus nqi ib channel PAM4 kev hloov pauv
● Integrated 850nm VCSEL array thiab PD array
● DDM muaj nuj nqi siv
● Kub-pluggable
● Tsawg zog dissipation: :<4W on 200G end, <3W on 100G end
● Cov khoom lag luam ua haujlwm kub ntau: 0 degree txog 70 degree
● Ua raws li ROHS2.0
Daim ntawv thov
● Cov chaw zov me nyuam thiab Cloud Networks
● 200G InfiniBand HDR tshuab
Cov qauv
● IEEE 802.3cd
● InfiniBand 4xHDR
● SFF 8679
● CMIS4.0 los yog SFF8636
Qhov siab tshaj qhov ntsuas
|
Khoom
|
Hom hluav taws xob |
raws tu qauv
|
Nominal Rate |
Specifications |
Txuas |
|||
|
Ua ke (Gbps) |
Hluav taws xob txoj kab (Gbaud) |
ppm ua |
Siab ceev Hluav taws xob |
Pre-FEC Max BER |
||||
|
200g kawg |
4X50
|
IEEE 802.3 cd |
212.5 |
26.5625 PAM 4 |
±100 |
200 GAUI-4 |
1E-6 rau InfiniBand HDR; 2.4E -4 rau 200GBASE-SR4 |
0.5~ 100m
|
|
Rau 100G kawg |
2X50
|
IEEE 802.3 cd |
106.25 |
26.5625 PAM 4 |
±100 |
200 GAUI-4 |
||
|
Parameter |
Cim |
Chav tsev |
Min |
Max |
|
Case Kev Ua Haujlwm Kub |
Sab saum toj |
degree |
0 |
70 |
|
Cia qhov kub thiab txias |
Ts |
degree |
-40 |
85 |
|
txheeb ze humidity |
RH |
feem pua |
0 |
85 |
|
Fais fab mov Voltage |
Vcc |
V |
-0.5 |
3.6 |
Pom zoo ua hauj lwm tej yam kev mob
|
Parameter |
Cim |
Chav tsev |
Min |
Ntaus |
Max |
|
Kev khiav hauj lwm Case Temperature Range |
Tca |
oC ua |
0 |
/ |
70 |
|
Fais fab mov Voltage |
Vcc |
V |
3.135 |
3.3 |
3.465 |
Electric Ports Txhais
|
Parameter |
Cim |
Chav tsev |
Min |
Ntaus |
Max |
Sau ntawv |
|
Cov khoom siv hluav taws xob |
VCC |
V |
3.135 |
3.3 |
3.465 |
|
|
Kev siv fais fab |
Pc |
W |
|
|
4 |
200g kawg |
|
|
|
3 |
100G kawg |
|||
|
Transmitter |
||||||
|
Input Differential Impedance |
RIN |
Ω |
80 |
100 |
120 |
|
|
Single Ended Data Input Swing |
VIN |
mV-p |
90 |
|
500 |
|
|
Transmit Disable Voltage |
VDIS |
V |
2 |
|
VCCHOST |
|
|
Transmit Enable Voltage |
VEN |
V |
VEE |
|
VEE plus 0.8 |
|
|
Transmit Fault Assert Voltage |
VFA |
V |
2 |
|
VCCHOST |
|
|
Transmit Fault De-Assert Voltage |
VFDA |
V |
VEE |
|
VEE plus 0.8 |
|
|
Tus txais |
||||||
|
Single Ended Data Output Swing |
VOD |
mV-p |
200 |
|
500 |
|
|
LOS Fault |
VLOSFT |
V |
2 |
|
VCCHOST |
|
|
LOS Normal |
VLOSNR |
V |
VEE |
|
VEE plus 0.8 |
|
|
Differential txiav tsis sib haum |
|
feem pua |
|
|
10 |
|
|
IIC kev sib txuas lus |
||||||
|
IIC moos zaus |
- |
KHZ |
/ |
100 |
400 |
|
|
moos stretching |
- |
peb |
/ |
/ |
500 |
|
Pin Description
Qhov hluav taws xob interface rau lub transceiver yog 38 pins ntug connector. 38 tus pins muab cov ntaub ntawv ceev ceev, tsis tshua muaj kev soj ntsuam thiab tswj cov teeb liab, I2C kev sib txuas lus, lub zog thiab kev sib txuas hauv av. Sab saum toj thiab hauv qab views ntawm lub connector yog muab hauv qab no, nrog rau ib lub rooj hais txog tus naj npawb hu, cim thiab tag nrho cov lus piav qhia.
|
Pin |
Cim |
Lub npe / piav qhia |
|
1 |
GND |
Hauv av |
|
2 |
Tx 2 n |
Channel 2 Transmitter Inverted Data Input |
|
3 |
tx2 p |
Channel 2 Transmitter Non-Inverted Data Input |
|
4 |
GND |
Hauv av |
|
5 |
Tx 4 n |
Channel 4 Transmitter Inverted Data Input |
|
6 |
tx4 p |
Channel 4 Transmitter Non-Inverted Data Input |
|
7 |
GND |
Hauv av |
|
8 |
ModSelL |
Module Xaiv |
|
9 |
ResetL |
Module Pib dua |
|
10 |
Vcc Rx |
Ntxiv rau 3.3 V Fais Fab Txais Txais |
|
11 |
SCL |
2-wire serial interface moos |
|
12 |
SDA |
2-wire serial interface cov ntaub ntawv |
|
13 |
GND |
Hauv av |
|
14 |
rx3 pab |
Channel 3 Receiver Non-Inverted Data Output |
|
15 |
Rx 3 n |
Channel 3 Receiver Inverted Data Output |
|
16 |
GND |
Hauv av |
|
17 |
Rx 1 p |
Channel 1 Receiver Non-Inverted Data Output |
|
18 |
Rx 1 n |
Channel 1 Receiver Inverted Data Output |
|
19 |
GND |
Hauv av |
|
20 |
GND |
Hauv av |
|
21 |
Rx 2 n |
Channel 2 Receiver Inverted Data Output |
|
22 |
rx2 pab |
Channel 2 Receiver Non-Inverted Data Output |
|
23 |
GND |
Hauv av |
|
24 |
Rx 4 n |
Channel 4 Receiver Inverted Data Output |
|
25 |
rx4 pab |
Channel 4 Receiver Non-Inverted Data Output |
|
26 |
GND |
Hauv av |
|
27 |
ModPrsL |
Module Present |
|
28 |
IntL |
cuam tshuam |
|
29 |
Vcc Tx |
Ntxiv rau 3.3 V Fais Fab Transmitter |
|
30 |
Vcc 1 |
ntxiv rau 3.3 V Fais Fab |
|
31 |
LPMode |
Tsawg zog hom |
|
32 |
GND |
Hauv av |
|
33 |
tx3 p |
Channel 3 Transmitter Non-Inverted Data Input |
|
34 |
txh 3 n |
Channel 3 Transmitter Inverted Data Input |
|
35 |
GND |
Hauv av |
|
36 |
tx1 p |
Channel 1 Transmitter Non-Inverted Data Input |
|
37 |
Tx 1 n |
Channel 1 Transmitter Inverted Data Input |
|
38 |
GND |
Hauv av |
Pob Taw Qhia
Cov neeg kho tshuab specifications yog raws li QSFP56 transceiver module specification, hloov cov optical connectors nrog ib tug cable txuas peb kawg.
