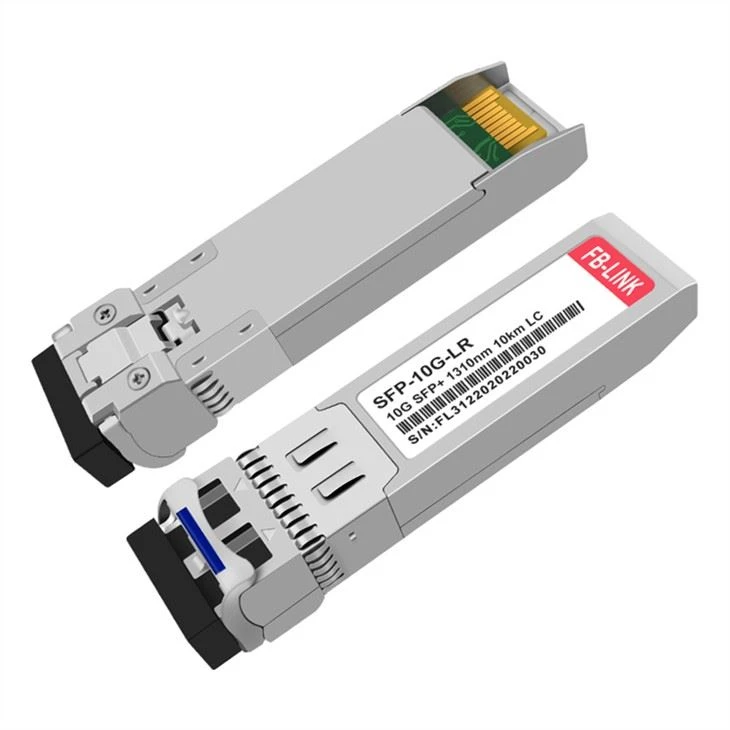

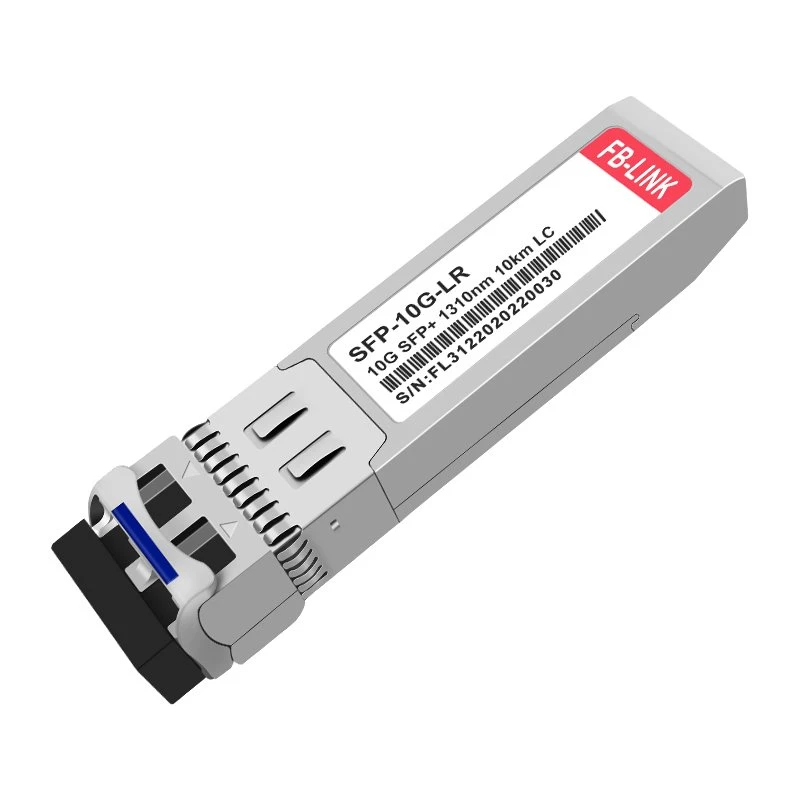

10GBASE SFP ntxiv rau LR
10GBASE SFP ntxiv rau LR yog ib qho kev cog lus 10Gb/s optical transceiver module rau serial optical kev sib txuas lus daim ntawv thov ntawm 10Gb/s.
- Khoom Taw qhia
10Gb/s 1310nm SFP ntxiv rau 10km Transceiver
10GBASE SFP ntxiv rau LR yog ib qho kev cog lus 10Gb/s optical transceiver module rau serial optical kev sib txuas lus daim ntawv thov ntawm 10Gb/s. OP3910D hloov 10Gb / s serial hluav taws xob cov ntaub ntawv ntws mus rau 10Gb / s optical tso zis teeb liab thiab 10Gb / s optical input teeb liab rau 10Gb / s serial hluav taws xob cov ntaub ntawv ntws. Kev kub ceev 10Gb / s hluav taws xob interface yog ua raws li SFI specification. Qhov kev ua tau zoo 1310nm DFB transmitter thiab siab rhiab heev PIN receiver muab kev ua tau zoo tshaj plaws rau Ethernet daim ntawv thov txog li 10km txuas.
SFP plus Module ua raws li SFF-8431, SFF-8432 thiab IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions muaj nyob rau ntawm ib tug 2-wire serial interface, raws li teev nyob rau hauv SFF-8472.Qhov tag nrho SFP raws li daim ntawv foos muab kub pluggability, yooj yim kho qhov muag chaw nres nkoj hloov khoom dua tshiab thiab tsawg EMI emission.
Yam khoom tsom teeb
● Kub-pluggable SFP ntxiv rau daim ntawv
● Txhawb 2.5-10.52Gb/s ntsis tus nqi
● Lub zog dissipation<>
● Muaj rooj plaub kub ntawm -40 degree txog 85 degree
● Ib qho 3.3V fais fab mov
● Qhov siab tshaj qhov txuas ntev ntawm 10km ntawm Ib Hom Fiber (SMF)
● Aligned nrog IEEE 802.3ae
● 10G DFB transmitter thiab 10G PIN receiver

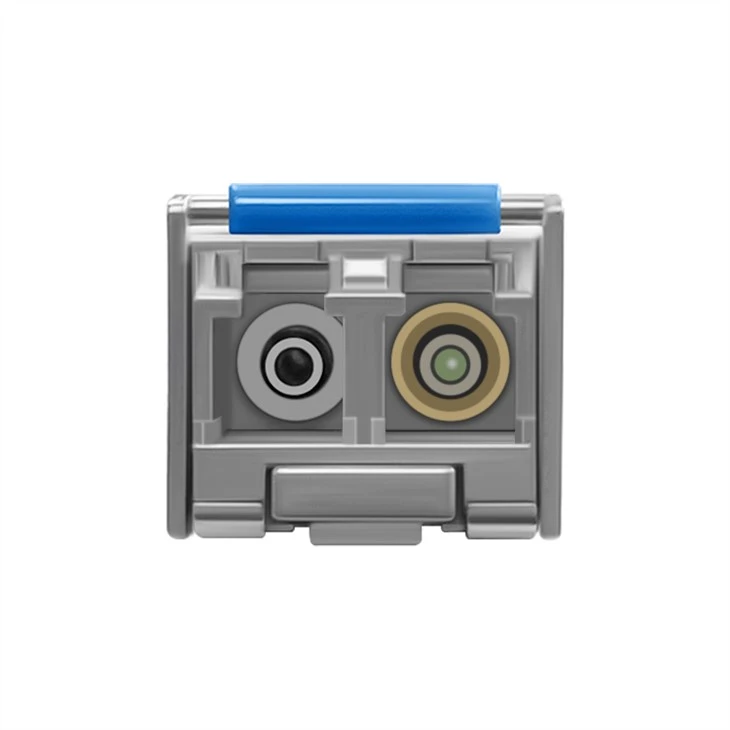

● Duplex LC receptacles
● I2C tswj interface
● RoHS raws
Kev piav qhia
Tau tshaj | 10GBASE SFP ntxiv rau LR | Tus neeg muag khoom npe | FB-LINK |
Form Factor | SFP ntxiv | Max Data Rate | 10.52 Gbps |
Lub wavelength | 1310nm ua | Max Kab nrug deb | 10km ua |
Txuas | Duplex LC | Media | SMF |
Hom Transmitter | DFB | Hom txais | PIN |
TX Power | {0}.2 ~ 0.5dBm | Tus neeg txais kev xav | ＜{0}}.4dBm |
Powerbudget | 6.2dB ib | Txais Kev Tshaj Tawm | 0.5dBm |
Kev siv fais fab | Tsawg dua los yog sib npaug rau 1W | Extinction Ratio | 3.5 dB |
DDM/DOM | Txhawb nqa | Commercial Temperature Range | 0 mus rau 70 degree (32 txog 158 degree F) |
Cov txheej txheem | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP plus MSA Compliant, CPRI, eCPRI | Warranty | 3 Xyoo |
