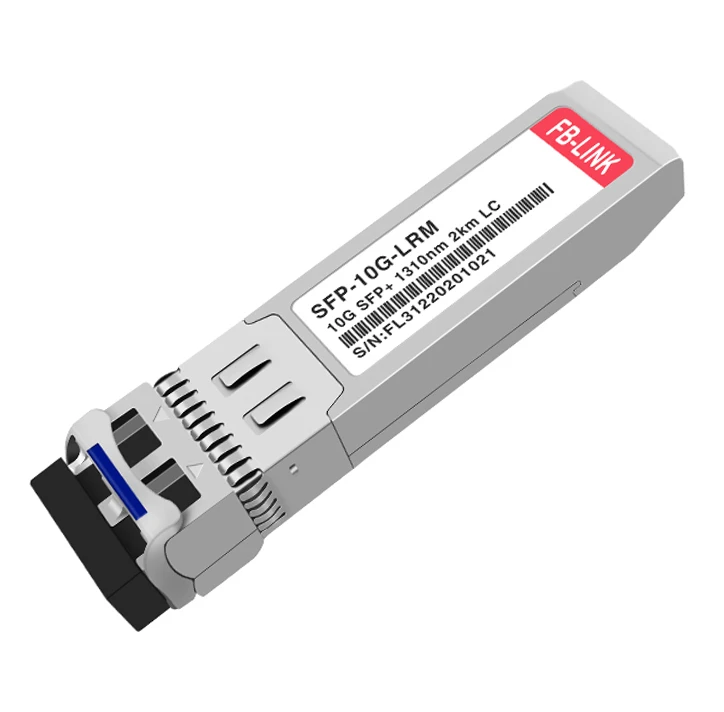

10G SFP+ 2KM LRM2
10G SFP+ 2KM kis tau los ntawm ib hom kev kho qhov muag fiber ntau, thiab qhov kev ncua deb tuaj yeem ncav cuag 2km. Nws muaj dual-fiber LC interface thiab kis tau tus mob wavelength ntawm 1310nm.
- Khoom Taw qhia
Khoom Description
SFP-10G-LRM optical modules muaj qhov sib kis ntau tshaj li 2km hauv multimode fiber ntau nrog lub wavelength ntawm 1310nm thiab txhawb 10GBASE-LRM Ethernet tus qauv, ua rau lawv haum rau FDDI tes hauj lwm thiab 10G cov ntaub ntawv kev sib txuas lus.
10GBASE-LRM2 yog 10 Gigabit Ethernet specification hauv IEEE802.3aq tus qauv, qhov "LRM" txhais tau tias "Long Reach Multimode", uas yog hais txog Length Reach Multimode, thiab SFP-10G-LRM optical modules ua raws li cov lus qhia no yog Feem ntau yog siv rau 2km luv luv LAN kev twb kev txuas.Lub transceiver muaj peb yam: FP laser transmitter, tus PIN photodiode nrog integrated Transimpedance Preamplifier (TIA) thiab MCU tswj chav tsev. Tag nrho cov modules ua tau raws li Class I laser kev ruaj ntseg. Lub transceiver yog sib xws nrog SFP multi-source protocol thiab SFF{10}} digital diagnostics.
10G SFP + LRM2 optical module tuaj yeem siv nrog OM1, OM2, thiab OM3 multimode fibers, thiab feem ntau yog siv rau FDDI tes hauj lwm thiab 10G cov ntaub ntawv kev sib txuas lus, thiab tau ua raws li MSA SFF-8431 tus qauv rau nws cov kev siv hluav taws xob tsawg thiab EMI kev ua tau zoo.
Lub 10g SFP+ 2km module yog qhov kev sib txuas lus ceev thiab muaj txiaj ntsig zoo nrog kev sib txuas lus zoo thiab kev ntseeg tau. Siv kev sib kis ceev ntawm 10Gbps, nws tuaj yeem pab txhawb qhov kev ncua deb ntawm 2 km. Txawm nyob rau hauv kev lag luam tes hauj lwm, cov ntaub ntawv chaw, huab xam, los yog nyob rau hauv ntau yam high-bandwidth daim ntawv thov scenarios xws li high-txhais video nyob broadcast, 10g SFP+ 2km module tuaj yeem muab cov neeg siv nrog kev sib tw, nrawm, thiab ua haujlwm zoo. network kev pab cuam. Tsis tas li ntawd, nws kuj muaj cov txheej txheem yooj yim thiab yooj yim-rau-siv cov txheej txheem sab saud thiab ntau qhov sib xws, uas tuaj yeem hloov mus rau ntau lub network ib puag ncig thiab daim ntawv thov scenarios kom tau raws li qhov xav tau tiag tiag. Nws cov npe yog lub hauv paus tseem ceeb hauv kev tsim cov thev naus laus zis hauv network thiab pab txhawb kev digitalization, kev qhia xov xwm thiab kev txhim kho tshiab.
Nta
Kub-swappable SFP + pob
LC Duplex connector
Txhawb cov kev kuaj mob digital
Kev siv hluav taws xob <1.5W
10Gb/s serial optical interface raws li 802.3ae 10GBASE-LR Lite
Class 1 FDA laser nyab xeeb thiab RoHS raws
Specifications
| Form Factor | SFP + | Max nrug | 2km ua |
| Lub wavelength | 1310nm ua | DDM | Txhawb nqa |
| Txuas | Duplex LC | Ua haujlwm Voltage | 3.3V |
| TX Power | {0}.2 ~ 0.5dBm | Cov ntaub ntawv tus nqi | 10G |
| Hom Fiber | SMF | Commercial Temperature Range | 0 mus rau 70 degree (32 txog 158 degree F) |
Connectivity Solutions
DDM
Siv dav
Tau tshaj
FAQ
Q: Puas yog tag nrho koj cov modules qub?
Q: Kuv puas tuaj yeem xa rov qab lossis pauv yog tias kuv tau txais qhov yuam kev?
Q: Koj siv txoj kev twg los xa koj cov khoom?
