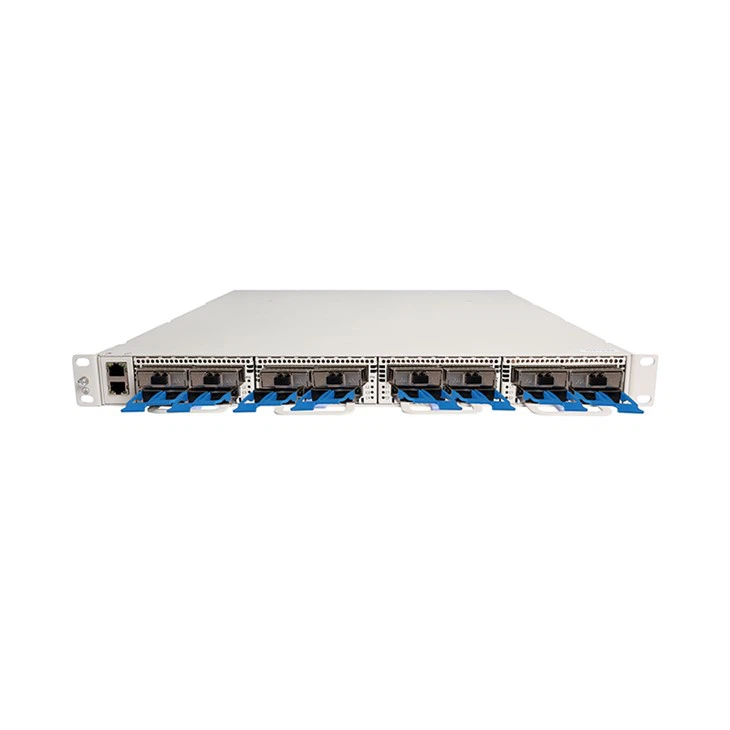

1.6T DCI Muxponder / Transponder 1
1.6T DCI Muxponder / Transponder yog FB-LINK 200G / 400G stackable wavelength division transmission platform, uas muaj cov yam ntxwv ntawm cov kis tau tus mob loj, me me, tsawg zog noj, yooj yim khiav lag luam thiab tu, thiab lwm yam Raws li qhib Software architecture, nws muab ntau yam qhib interfaces los pab txhawb kev sib koom ua ke rau hauv qhov thib peb tog kev sib koom ua ke hauv kev tswj hwm network. Muab kev sib txuas nrog muaj zog scalability, muaj kev ntseeg siab thiab kev ruaj ntseg siab, uas tuaj yeem siv dav hauv cov ntaub ntawv chaw sib cuam tshuam thiab kev sib kis ntawm thaj chaw tshiab Metropolitan network.
- Khoom Taw qhia
1.6T DCI Muxponder / Transponder 1
FBL-OTDCI-I yog FB-LINK 200G / 400G stackable wavelength division transmission platform, uas muaj cov yam ntxwv ntawm cov kis tau tus mob loj, me me, tsawg zog noj, yooj yim khiav lag luam thiab tu, thiab lwm yam raws li qhib Software architecture, nws muab ntau yam qhib interfaces los pab txhawb kev koom ua ke rau hauv qhov thib peb-tog kev sib koom ua ke kev tswj hwm network. Muab kev sib txuas nrog muaj zog scalability, muaj kev ntseeg siab thiab kev ruaj ntseg siab, uas tuaj yeem siv dav hauv cov ntaub ntawv chaw sib cuam tshuam thiab kev sib kis ntawm thaj chaw tshiab Metropolitan network.
FBL-OTDCI-I yog qhov hloov pauv thiab muaj txiaj ntsig zoo rau kev daws teeb meem 400GbE thiab 100GbE cov kev pabcuam, lossis ua kom muaj peev xwm hauv lub network uas twb muaj lawm. Cov cuab yeej muaj plaub 400G pluggable uplink optical modules, xa mus txog 1.6T hauv 1U chassis. FBL-OTDCI-I integrates mux/demux, EDFA thiab OSW thiab xa tag nrho cov optical txheej. Qhov kev hloov pauv hloov pauv no ua rau kev them nyiaj raws li koj-loj hlob architecture.
Cov yam ntxwv ntawm cov khoom
● Modular tsim: Lub Rooj Tswjhwm Saib tau txais tus qauv kub swappable, txhawb kev hloov kho kom zoo, thiab tuaj yeem hloov kho lossis tshem tawm cov kev pabcuam raws li kev xav tau.
● 1.6T muaj peev xwm tsim: Txhawb txog 16 * 100G tus neeg siv khoom sab nraud, 8 * 200G thiab 4 * 400G kab sab kis tau tus mob, ua tiav bidirectional 1.6Tbps kev lag luam kis tau tus mob. Los ntawm cov khoom siv stacking, lub peev xwm kis tau zoo tuaj yeem nthuav dav rau ib leeg fiber ntau 19.2Tbps (ib nthwv dej 200G * 96 nthwv dej) lossis 25.6Tbps (ib nthwv dej 400G * 64 nthwv dej)
● 7nm nti thev naus laus zis: Raws li cov neeg nqa khoom siab tshaj plaws 7nm coherent DSP thiab photon kev koom ua ke thev naus laus zis, suav nrog CFP2-DCO thiab davhlau ya nyob twg kho qhov muag thev naus laus zis, ua tiav kev siv hluav taws xob tsawg ntawm 12W / 100G, zoo heev rau kev lag luam qhov nruab nrab Qib (25W / 100G).
● Super Channel thev naus laus zis: Txhawb nqa ntau tus neeg nqa khoom super channel thev naus laus zis, txhim kho kev siv spectrum zoo heev, thiab tuaj yeem cuam tshuam nrog kev ua haujlwm siab ntev-ntev optical kis tau tus mob platform Vispace1000 series cov khoom siv lossis lwm tus neeg sab nrauv optical txheej kis tau tus mob kom ua tiav optoelectronic decoupling.
● Txheem DCI khib tsim: Nws muaj qhov tsim nyog qhov siab, dav, thiab qhov tob tsim, nrog rau pem hauv ntej thiab nram qab cua txias tsim. Nws txhawb nqa dual fais fab mov 1 ntxiv rau 1 kub thaub qab, thiab AC thiab DC fais fab mov DC -48V, ua tau raws li cov neeg rau zaub mov khib yuav tsum tau ntawm cov ntaub ntawv chaw computer chav.
● Nruab nrog ua tiav kev tswj hwm kev sib txuas lus: txhawb nqa ntau yam kev sib txuas lus tseem ceeb xws li WEB, SNMP, CLI, TLI, thiab lwm yam kev tswj xyuas network.
● Txhawb SDN architecture network tswj kev tsim: Cov cuab yeej ua raws li SDN tsim lub tswv yim thiab tuaj yeem muab qhib Netconf/Yang qauv, uas tuaj yeem ua tau raws li Netconf/Yang interface raws li Tuam Tshoj Unicom, Telecom, thiab lwm tus neeg siv khoom.
● Txhawb kev txhim kho kev txhim kho ntawm kev tswj hwm kev sib txuas lus: Ntau yam kev tswj hwm network tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
Cov yam ntxwv ntawm lub cev
| Yam ntxwv | Kev piav qhia |
| Qhov siab | 1U |
| Txee haum | 19-inch |
| Fais fab mov |
1 ntxiv rau 1 redundancy fais fab mov AC input: 100-240V, 47-63Hz DC input: -40V--72V High voltage DC input: 192V-288V |
| Txoj kev txias | Cov cua ntws kev taw qhia yog los ntawm pem hauv ntej mus rau nram qab |
| Ua haujlwm ib puag ncig |
Ua haujlwm kub: 0 degree -45 degree Nco cia kub: -40 degree ~ 70 degree txheeb ze humidity: 10 feem pua -90 feem pua, tsis muaj condensation |
| Management Interface | RJ 45 |
| Kev tswj hwm | SNMP/NETCONF |
1. Chav tsev hluav taws xob
1.1 Pluggable 400G DCI Transponder Card rau FBL-OTDCI-400I (4 x 100G QSFP28 txog 1 x 400G CFP2 DCO)
| Yam ntxwv | Kev piav qhia |
| Tus lej nyob hauv Slots | Nyob ib lub qhov |
| Client-side interface | Txhua daim npav pabcuam txhawb nqa plaub lub pluggable QSFP28 raws li 100G tus neeg siv cov chaw nres nkoj, hauv tag nrho kaum rau 100G tus neeg siv khoom chaw nres nkoj ib lub chassis. |
| Kab-sab interface |
Txhua daim npav pabcuam txhawb nqa ib qho pluggable 400G CFP2 DCO coherent modules, hauv tag nrho plaub 400G kab-sab ports. |
| Kab-sab teeb liab thiab multiplexing qauv | 400g :ua<->UAS 4<->OUG 4<->ODU4 |
| Client-sab teeb liab thiab daim ntawv qhia txoj kev |
100G <->ODU4 |
| Kab-sab modulation format | 400g: 16 QAM |
| FEC hom | 400G: SD-FEC |
